New Product - Liquid Filter Housings (PFA)

2024-07-05 Eternalwater

Product introduction

This is a chemical filter used in semiconductor chemical equipment. The housing connector is integrally molded with the head and cartridge, which reduces the space required for assembly.

The components are made of PFA perfluoropolymer, which has excellent chemical stability, temperature resistance and corrosion resistance. High-purity design, metal-free structure. Therefore, these housing designs can meet the stringent cleanliness requirements of ultra-pure chemicals. The bead connector can provide reliable connection and sealing to ensure the normal operation and safety of the equipment. It is particularly suitable for high-pressure, high-temperature and high-corrosion working environments.

Application area

1. Suitable for filtering high temperature and highly corrosive chemicals
2.Perfluorinated filters are generally installed in semiconductor manufacturing wet process equipment to filter wet chemicals such as acids and alkalis.
high flow filter cartridge

Features

1. The perfluorinated filter has very good temperature resistance and corrosion resistance
2. Ultra-clean PFA material ensures the cleanliness of the inner filter
3. Low metal ion precipitation to avoid liquid pollution

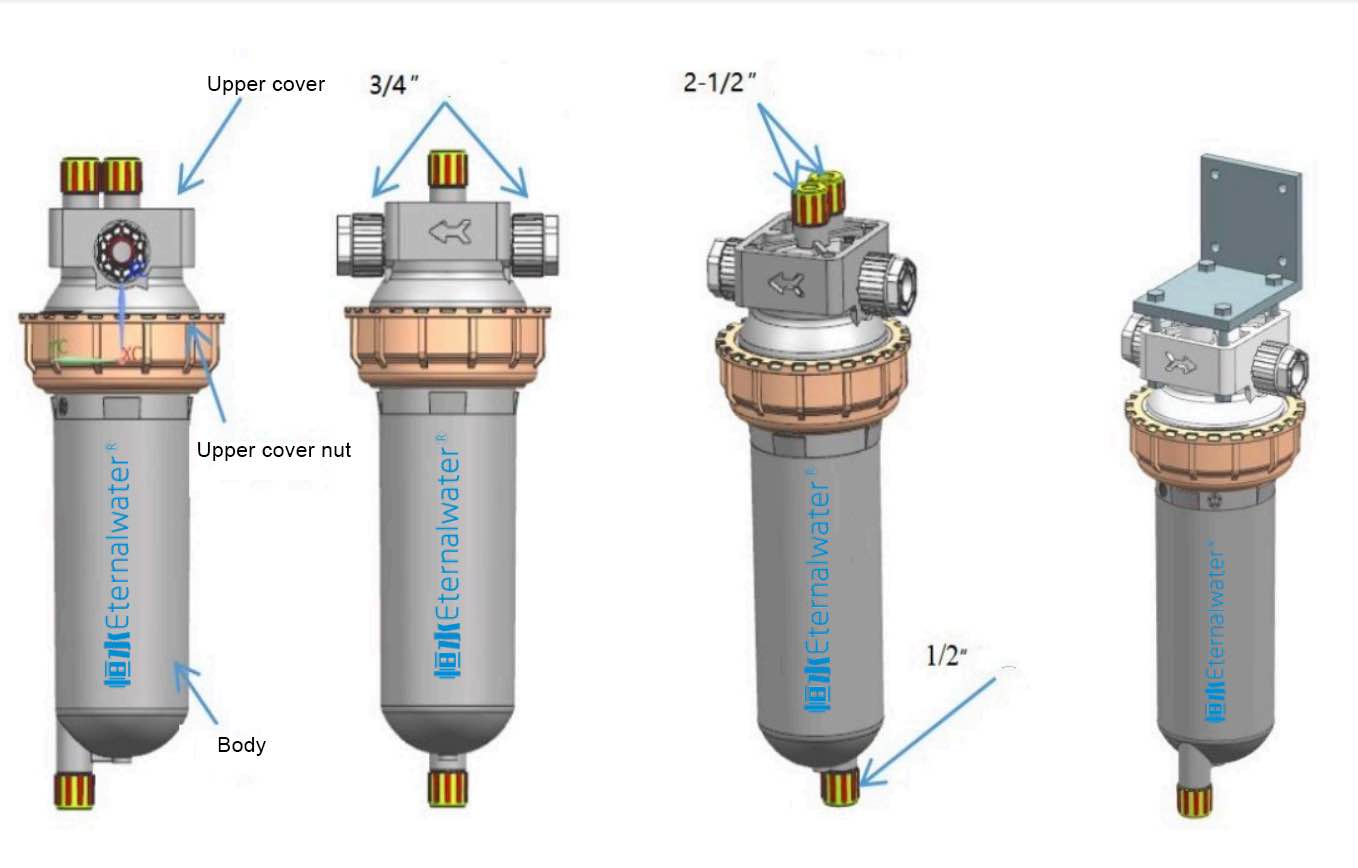

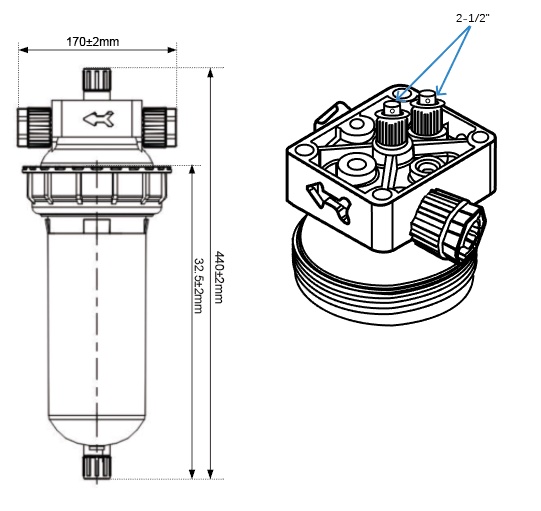

Appearance

Installation Notes

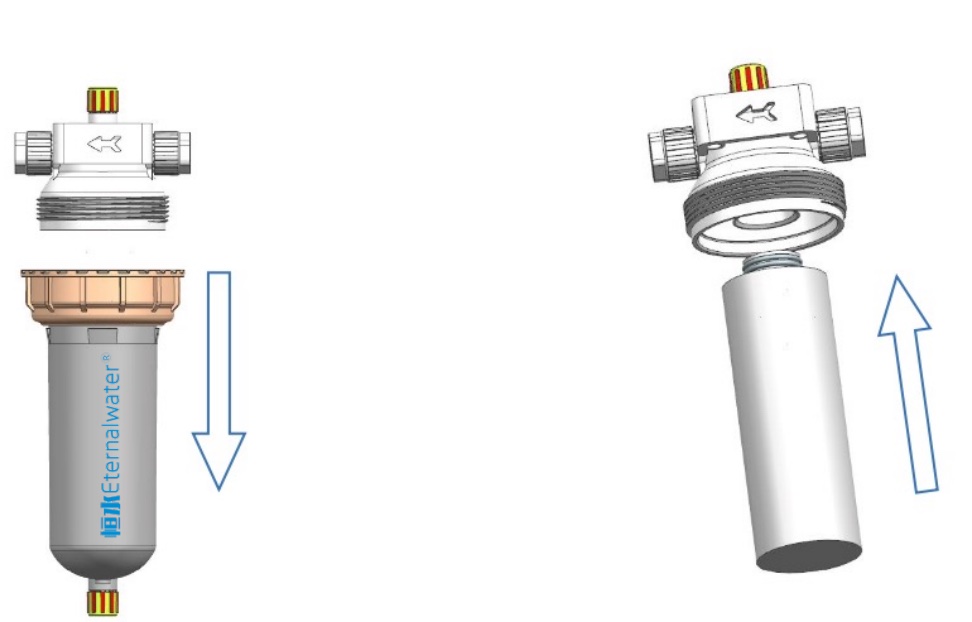

1.Loosen the upper cover nut and take out the filter body                                     2.Install the filter element into the filter cover

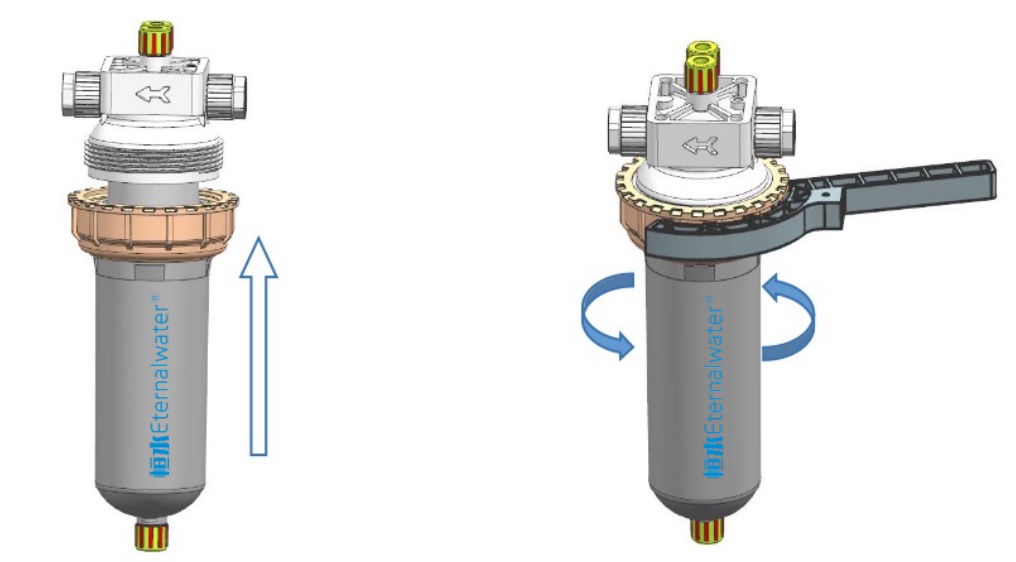

3. Install the filter body into the filter cover                                              4.Use the matching wrench to tighten the upper cover nut
