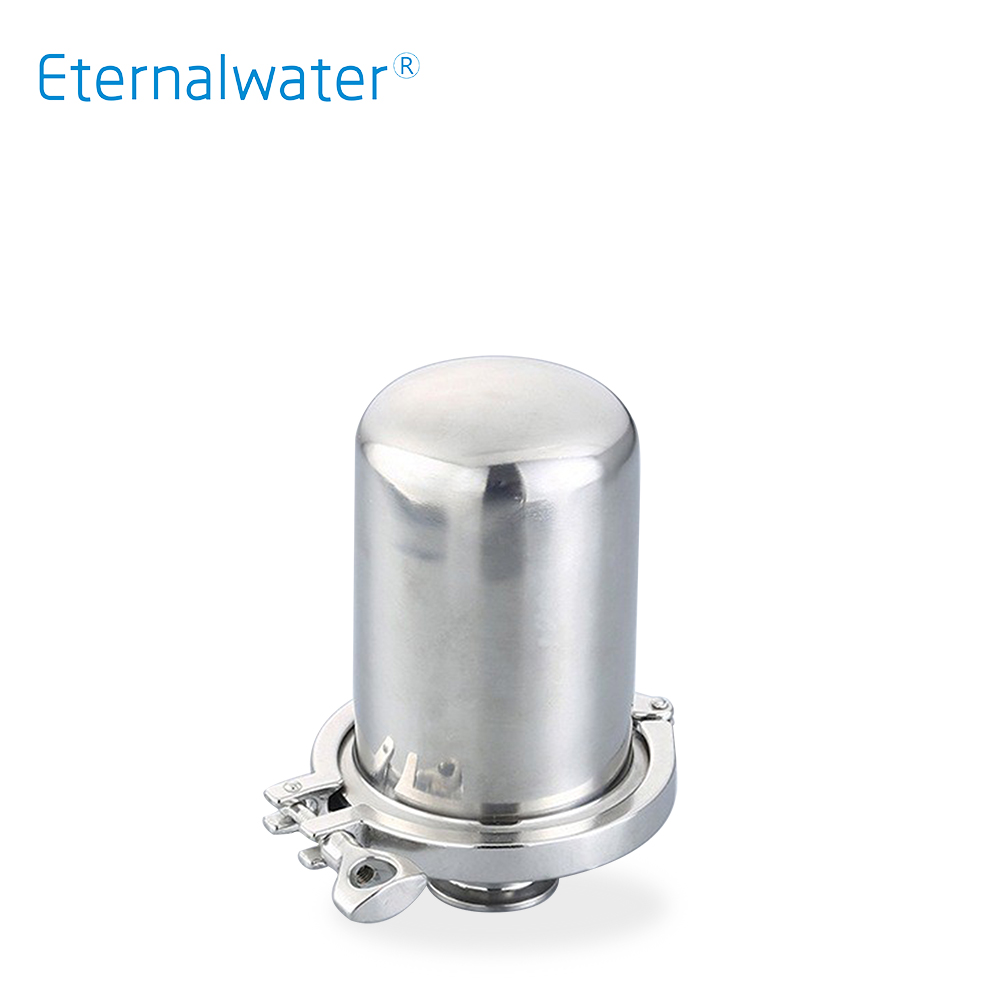

Tank breathers HV Series
Tank breathers HV Series

Tank breathers HV Series

Breathing filter, installed on all kinds of storage tanks, pure water tanks, sterile and dry ventilation holes. Ensure that the gas is isolated from the outside world through the respirator, and the discharge is smooth. Prevent the storage tank from being polluted by bacteria and dust in the air when the tank is ventilated due to liquid level changes.
  • Industry Application
  • It is an ideal filtration equipment for biomedicine, beer and beverage, chemical, water treatment and other industries.
  • DOWNLOAD
  • INQUIRY NOW
PRODUCT DESCRIPTION
  • Housing material:
  • 304,316L
  • Exhaust valve / Drain valve:
  • 304,316L
  • Clamp:
  • 304
  • Supporting feet:
  • 304
  • Seal ring / gasket:
  • Silicone , Vilton, EPDM, PTFE
  • Design pressure:
  • 0.6Mpa
  • Maximum working temperature:
  • 80°C
  • Cylinder connection:
  • Quick opening
  • Input /output:
  • Quick opening
  • Exhaust valve / Drain valve:
  • Inner hole 4mm,connected to 8mm pipe
  • Polishing type:
  • Mechanical polishing/ Electrolytic polishing
  • Polishing accuracy:
  • Internal Ra <0.60 μm and external Ra <0.80 μm
Ordering Information
  • Series
  • HV Series
  • Material
  • 04=304
  • 06=316L
  • Quantity Of Filter Cartridge
  • 01=1Pcs
  • End Cap Type (Filter cartridge)
  • H=226
  • C=215
  • Length (Filter cartridge)
  • 05=5inch
  • 10=10inch
  • 20=20inch
  • Cylinder Connector
  • K=Quick opening
  • Input/output Connector Type
  • K=Quick opening
  • O-ring Seal Material
  • S=Silicone
  • E=EPDM
  • V=Viton
  • D=E-FKM
  • Input/output connector diameter
  • K25=Φ25
  • K32=Φ32
  • K40=Φ40
  • Surface Treatment (internal)
  • A=Mechanical polishing
  • B=Electrolytic polishing
