Home Products E56X Series

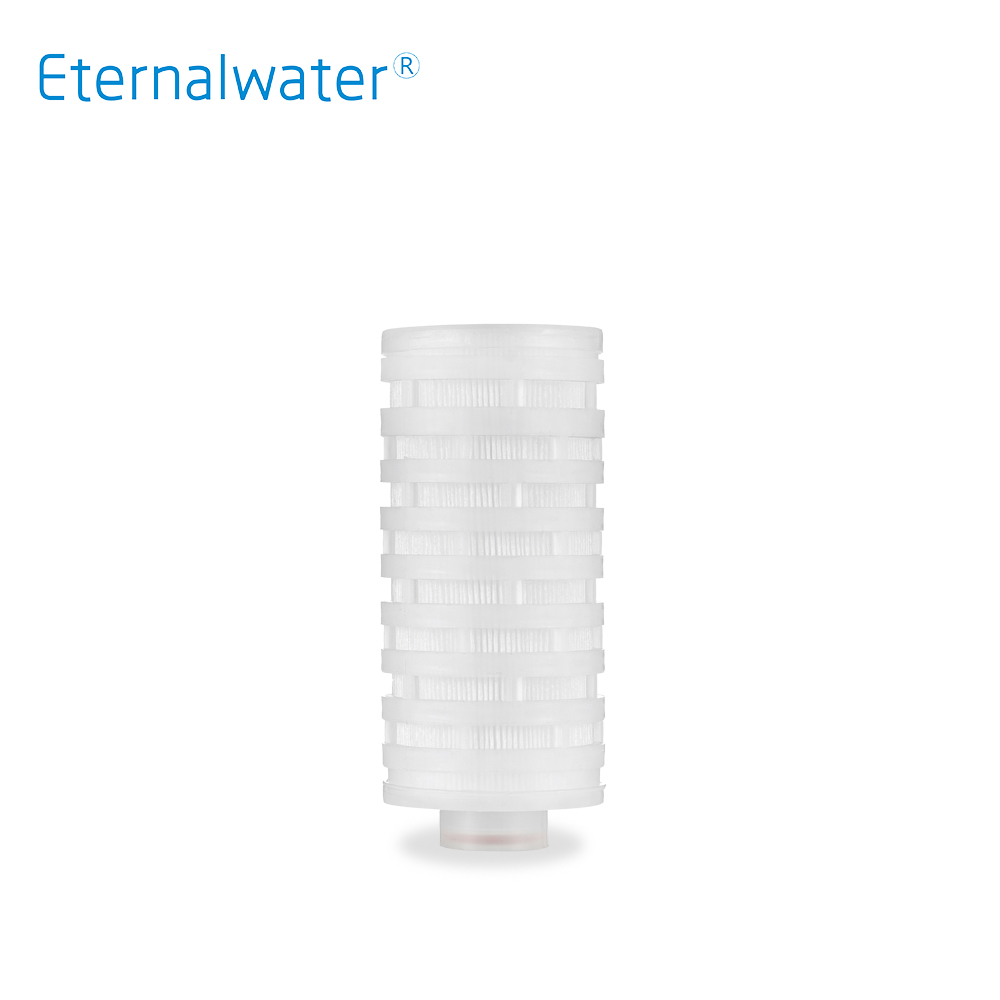

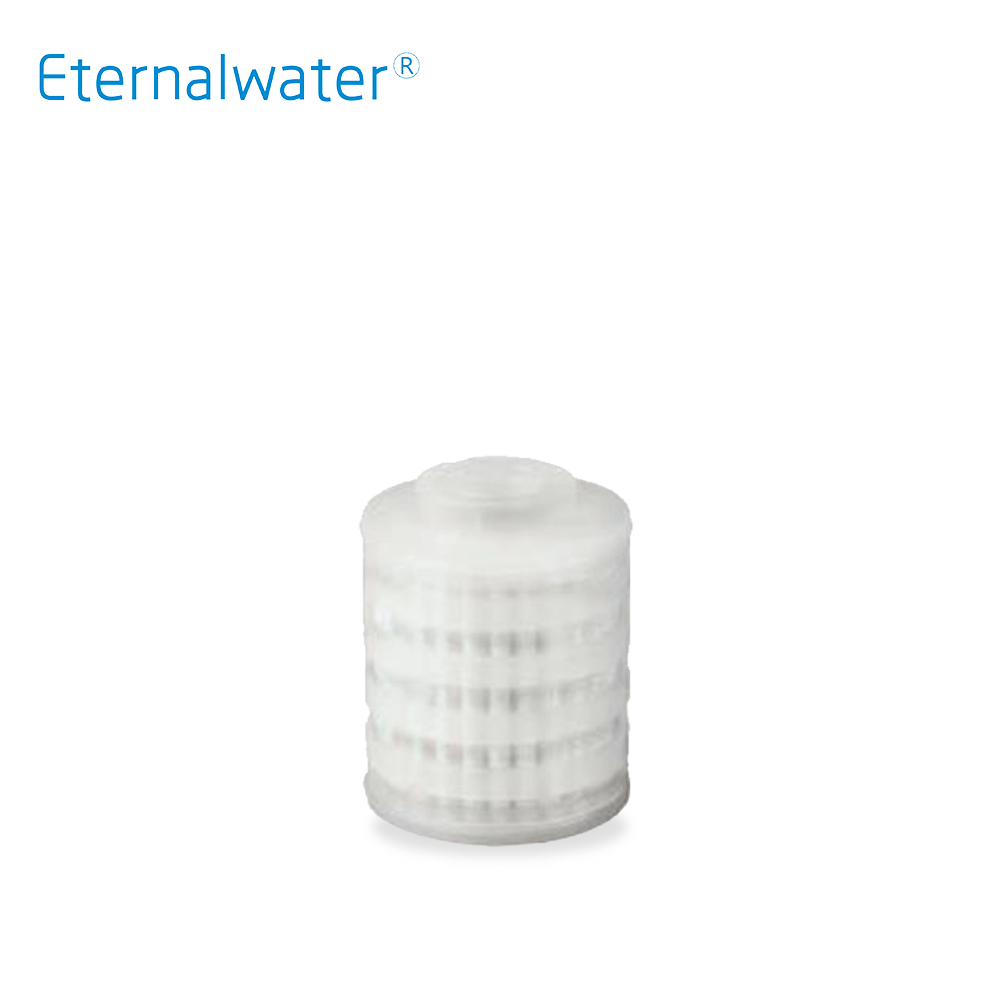

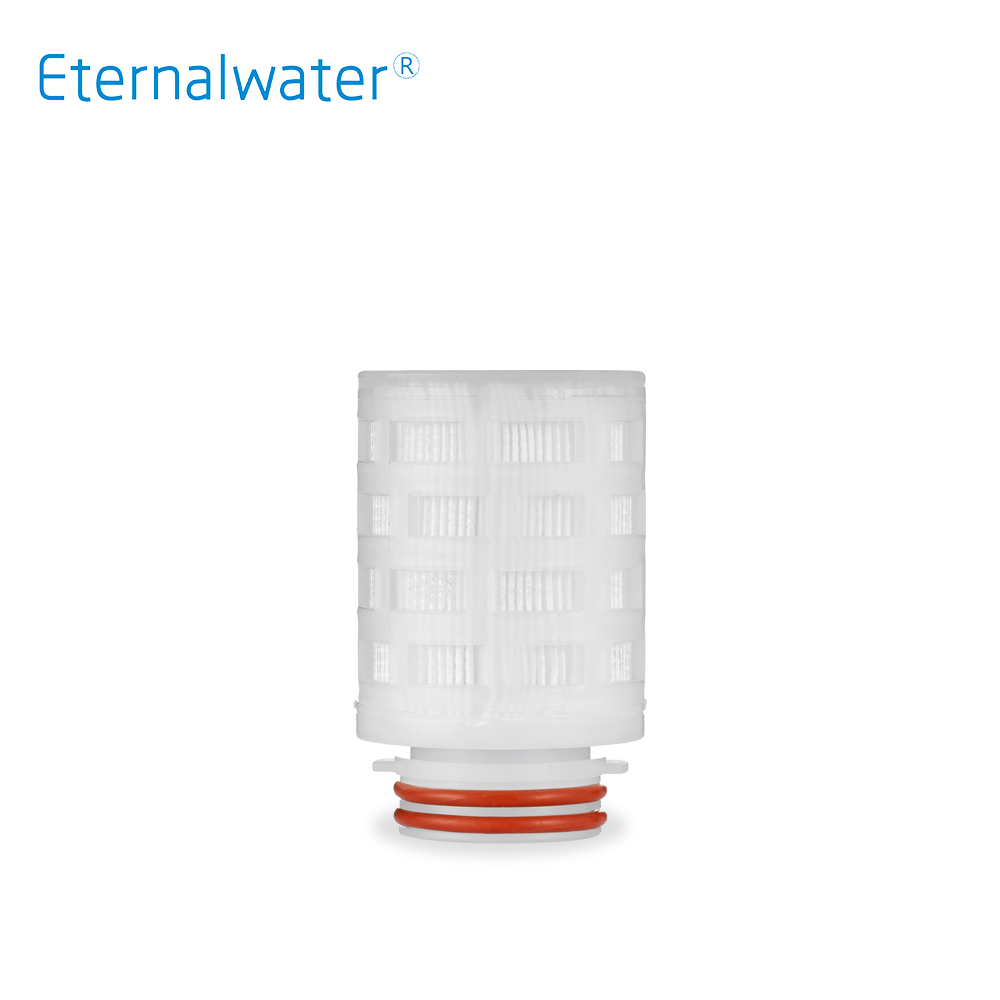

Small size diameter 56mm filter cartridge
Small size diameter 56mm filter cartridge
Small size diameter 56mm filter cartridge
Small size diameter 56mm filter cartridge

Small size diameter 56mm filter cartridge

Eternalwater E56X series--filter cartridges have characteristics of compact structure, small volume, and less loss of filter media.Designed for small-volume gas and liquid filtration, widely used in laboratory small-volume filtration.
  • Product features
  • Compact structure, small volume, easy operation
    The sealing ring snaps to ensure the tightness
    A variety of filter materials and removal ratings can be selected
    Less loss of filter media
  • Industry Application
  • Filtration of blood products
    Sterilization and filtration of fermentation gas
    Filtration of small volume of liquid
    Product Specification
  • DOWNLOAD
  • INQUIRY NOW
PRODUCT DESCRIPTION
  • Filter Material:
  • PES、PTFE、PVDF、PP、Nylon
  • Center core / Housing / End cap Material:
  • Polypropylene
  • Cage material:
  • Polypropylene
  • Vent O-ring Material:
  • Silicone/ EPDM/ Viton
  • Filtration area:
  • ≥0.11 m2/ 0.22m2
  • Maximum working temperature:
  • 80℃
  • Maximum working:
  • 4.2bar@23℃（forward direction)
  • pressure difference:
  • 2.4bar@80℃（forward direction）
  • Sterilization:
  • 126℃/30min； high pressure steam sterilization；≥30 times
  • Endotoxin:
  • ＜0.25EU/mL
  • Extractable matter:
  • ＜30mg/10inch
  • Biocompatibility:
  • All materials comply with biosafety evaluation of plastic USP<88>, ClassVI-70°C level
Ordering Information
  • Series
  • E56X Series
  • Micron Rating
  • 010=0.10μm
  • 020=0.20μm
  • 045=0.45μm
  • 100=1.00μm
  • 500=5.00μm
  • End cap type
  • N=Plug-in
  • K=Snap-in
  • Length
  • 025=2.5"
  • 050=0.5"
  • Membrane Material
  • P=PP
  • S=PES
  • T=PPTFE
  • TL=Hydrophilic PTFE
  • V=PVDF
  • VF=Hydrophobic PVDF
  • NL=Nylon
