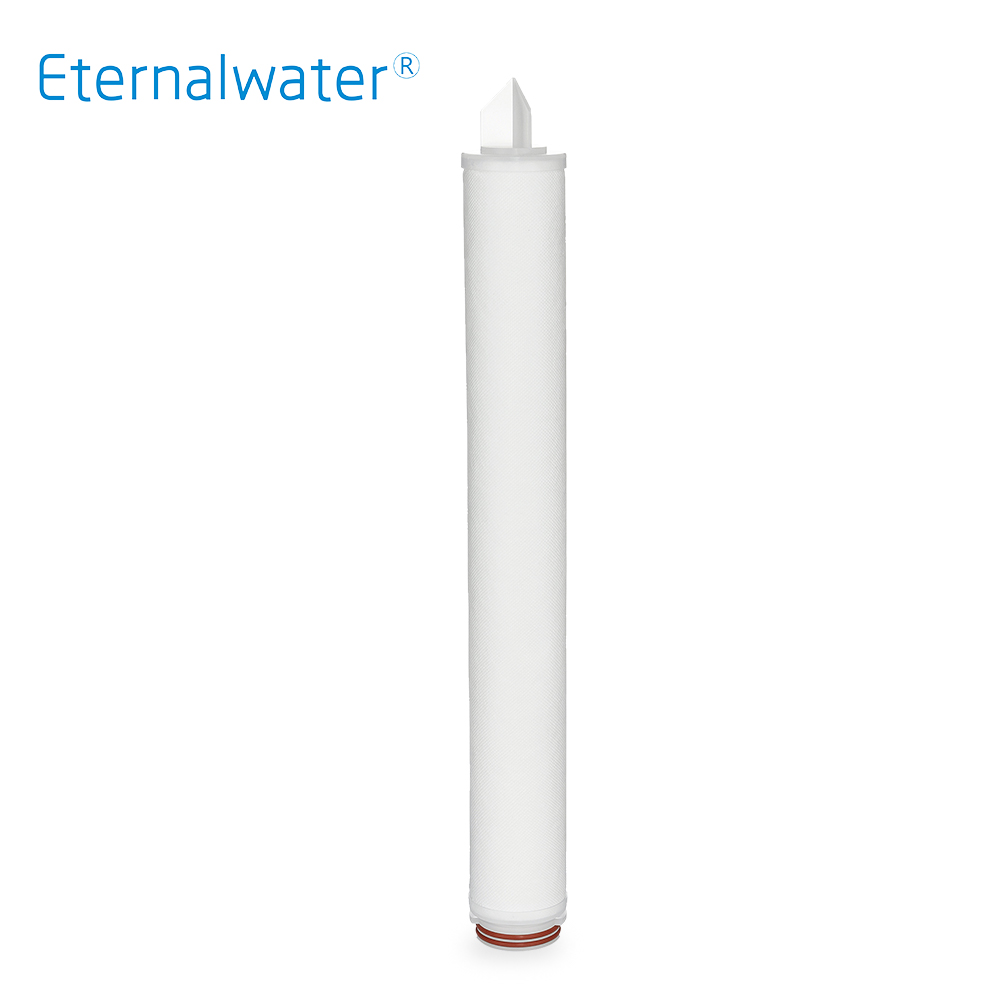

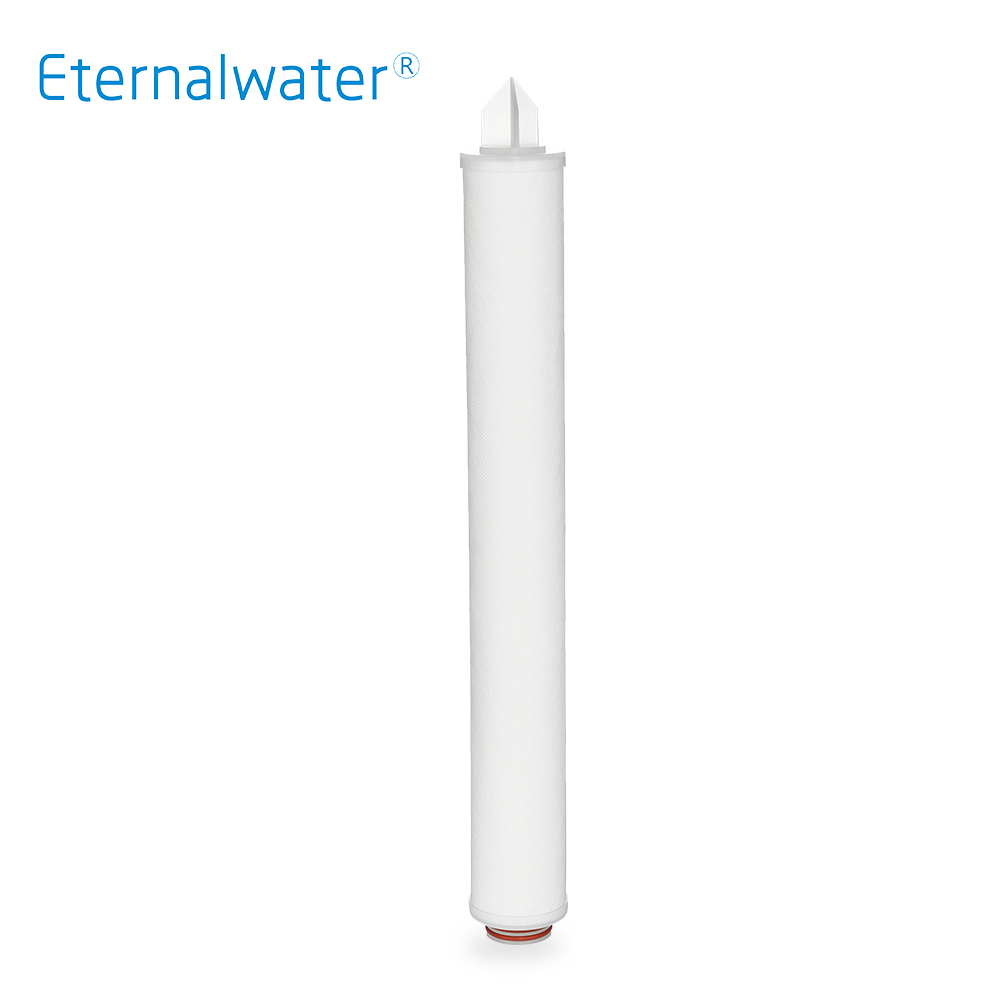

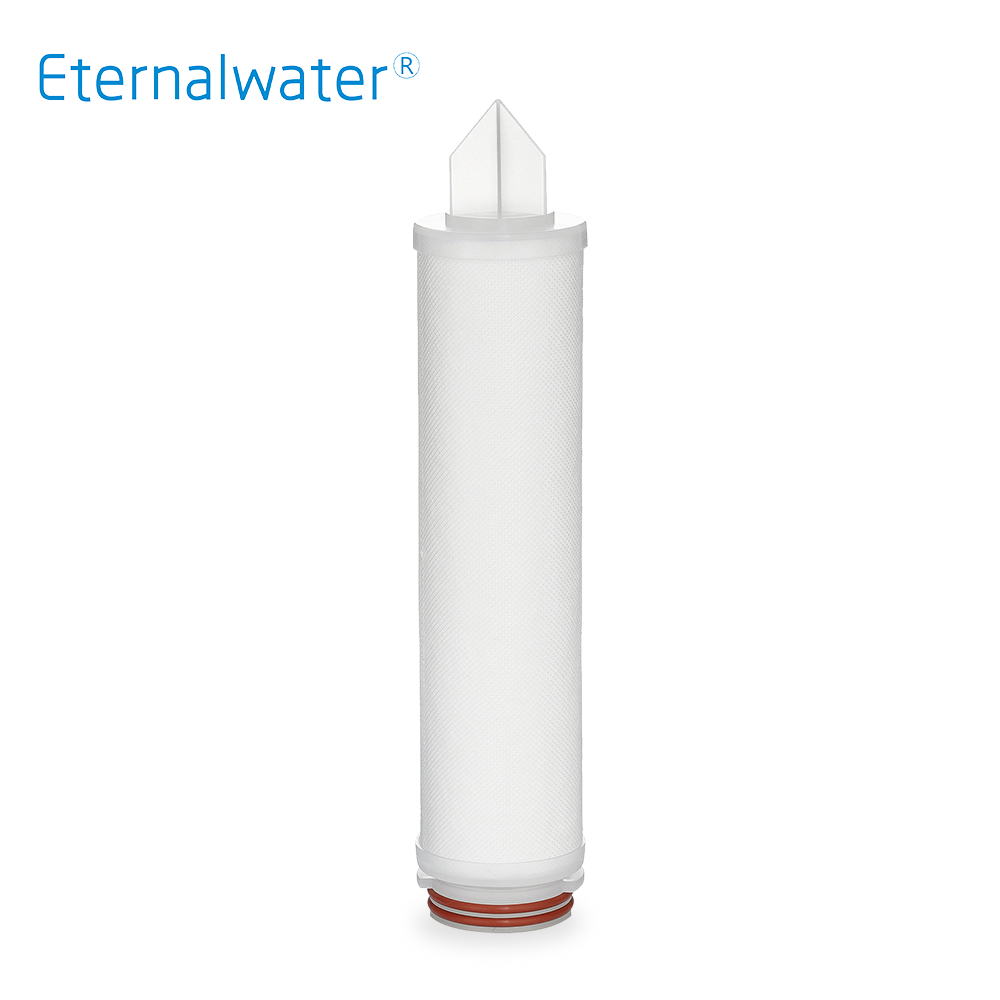

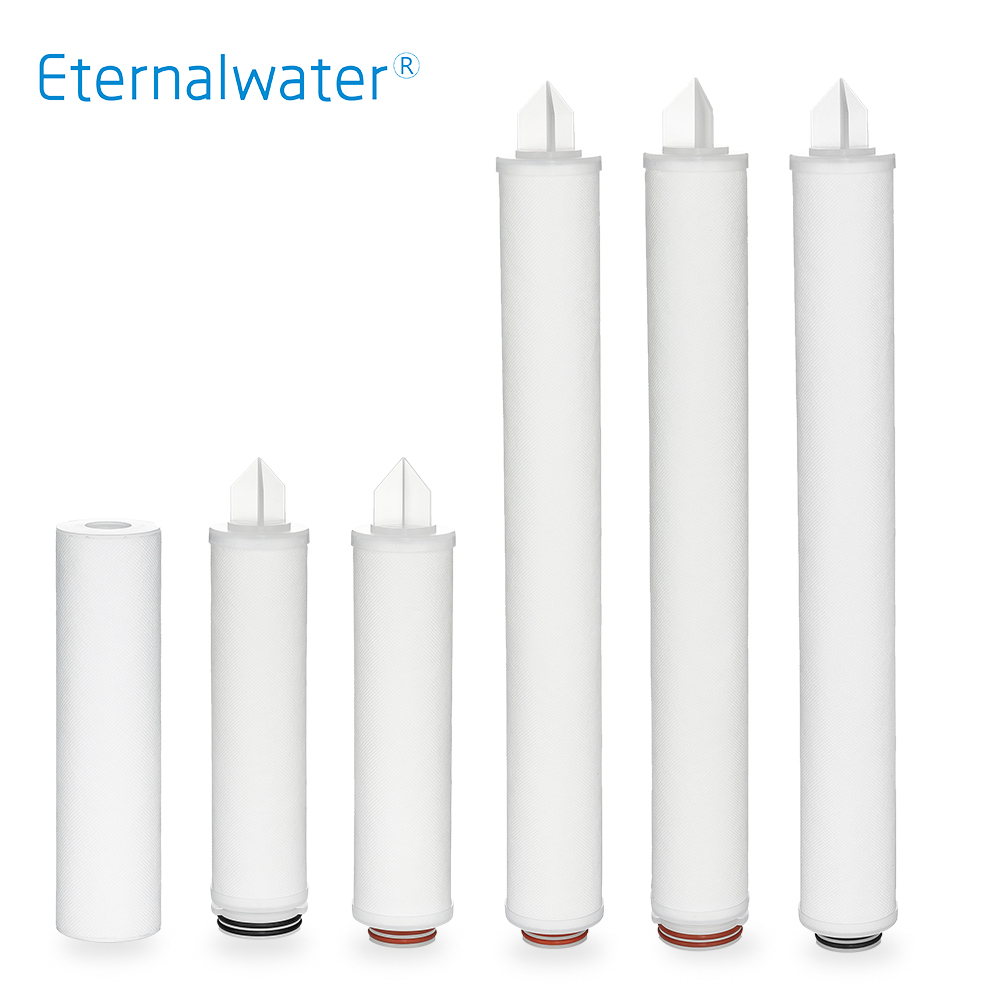

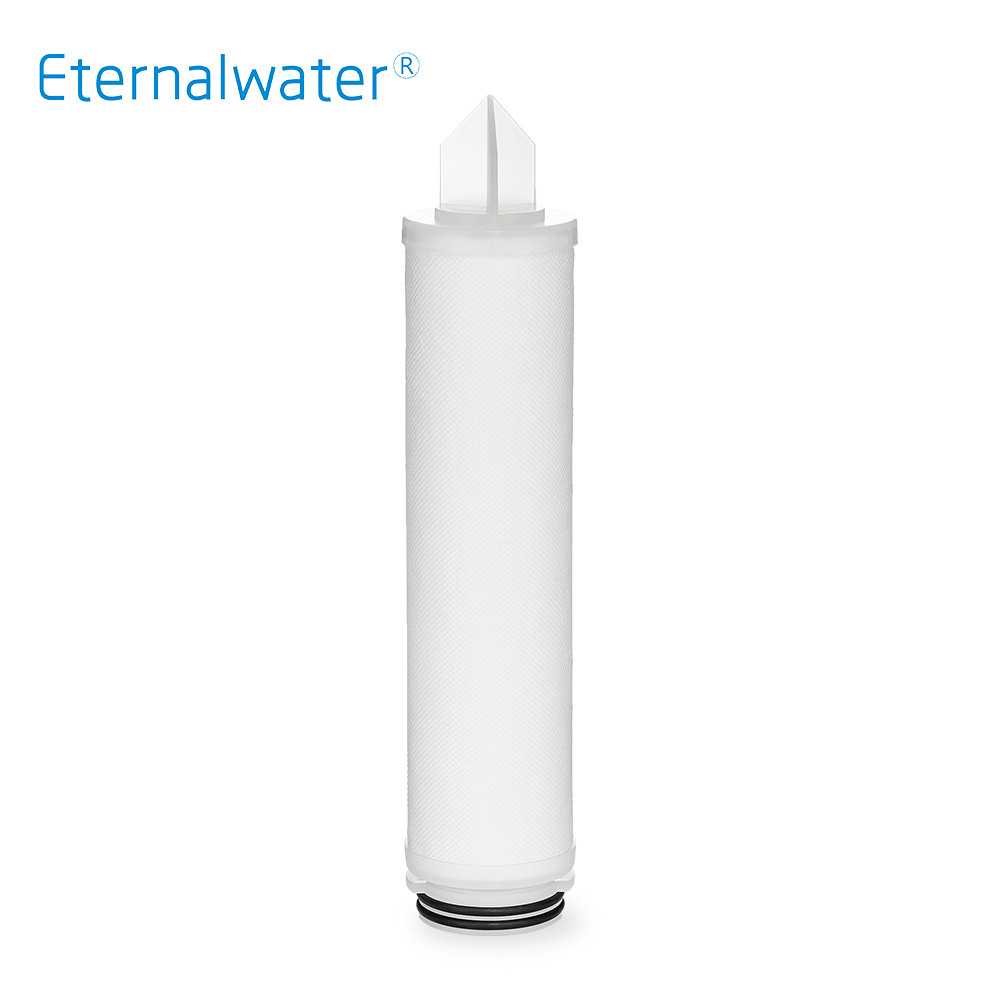

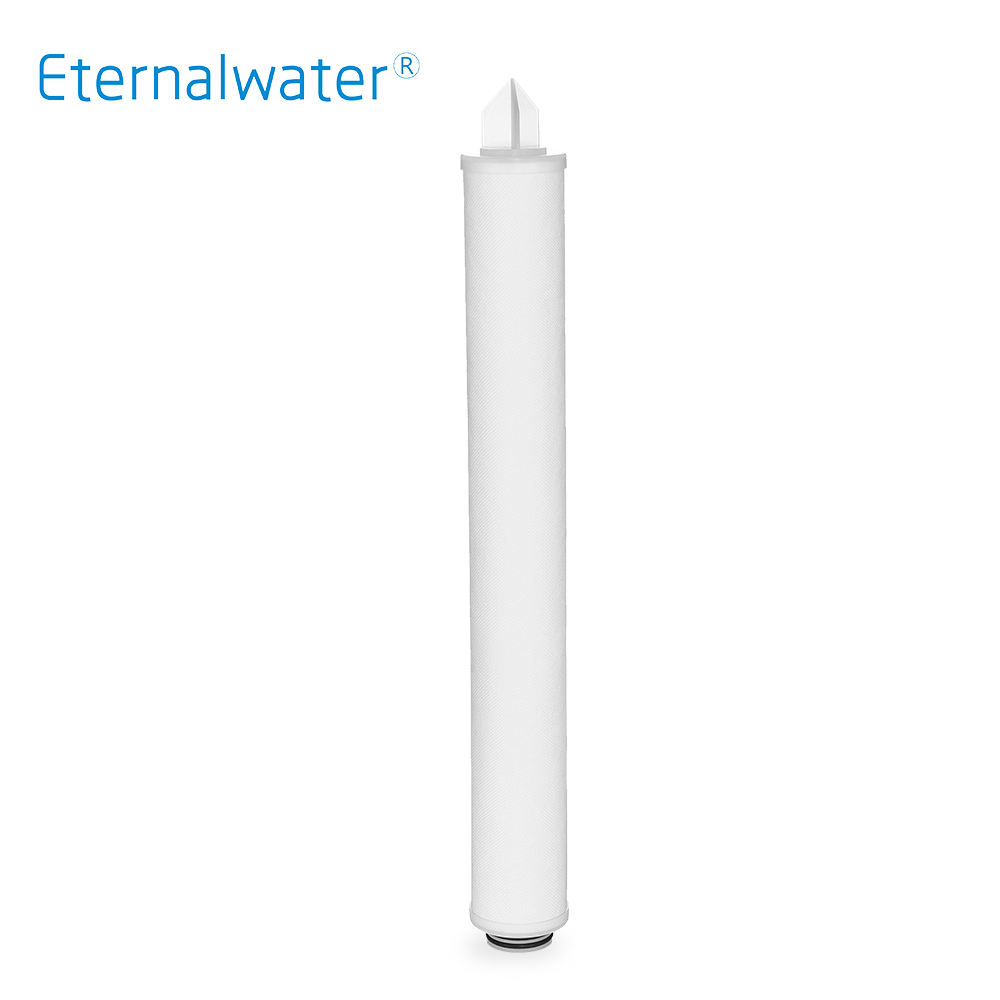

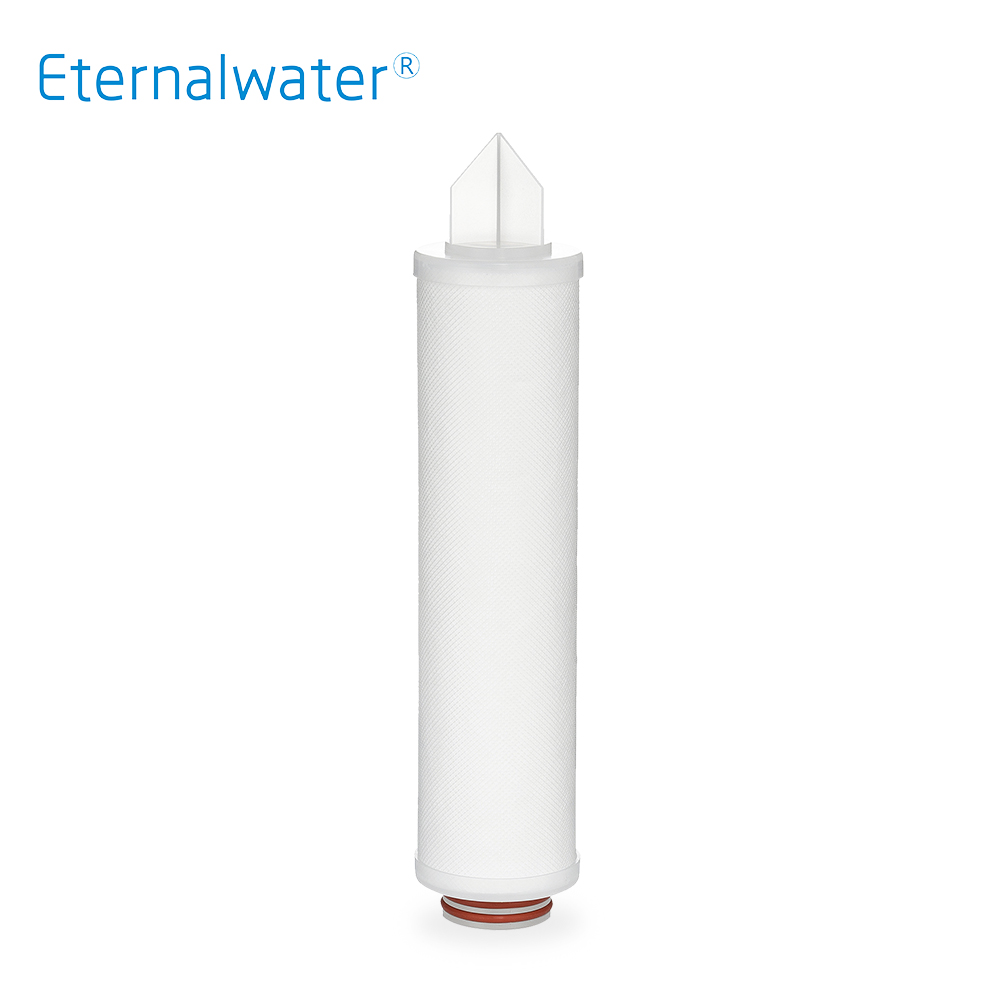

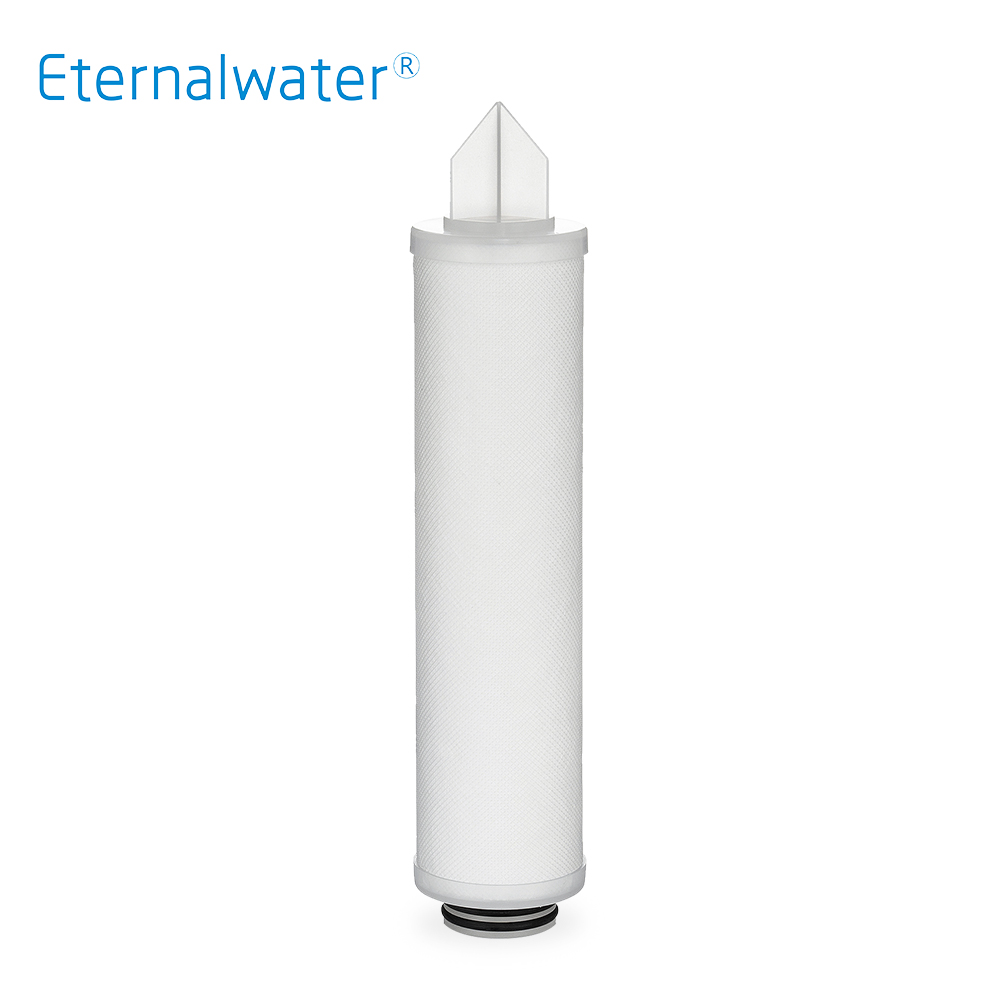

The ESP Series depth filter cartridge is made of polypropylene (PP) filter material and is suitable for gel removal and pre-filtration of the liquid with high particle impurity content, which can greatly improve filtration stability and reduce the penetration of gel and particle impurities.
  • Product features
  • Applicable viscosity range: <5000CPS
    Applicable adhesive types: acrylic glue, silicone, PU adhesive
    Types of solvents tolerated: esters, ketones, low-content benzene
  • DOWNLOAD
  • INQUIRY NOW
PRODUCT DESCRIPTION
  • Filter Material:
  • Polypropylene (PP)
  • Support Material:
  • Polypropylene (PP)
  • Cage Material:
  • Polypropylene (PP)
  • Length:
  • 5inch;10inch; 20inch
  • Removal Rating:
  • 1μm、5μm、10μm、20μm、50μm
  • O-ring Seal Material:
  • Silicone;EPDM;Viton
  • Maximum Working Temperature:
  • 60°C
  • Maximum Working Differential Pressure:
  • 4.2bar(23°C) (forward direction ) 1.5bar(80°C)(forward direction )
Ordering Information
  • Series
  • ESP
  • Removal Rating
  • 100=1.00μm
  • 500=5.00μm
  • 1000=10μm
  • 2000=20μm
  • 5000=50μm
  • End cap type
  • J1=222/Fin
  • J2=226/FIn
  • J3=DOE
  • Length
  • 05=5"
  • 10=10"
  • 20=20"
  • O-ring
  • S=Silicone
  • E=EPDM
  • V=Viton
  • core
  • A=PP
