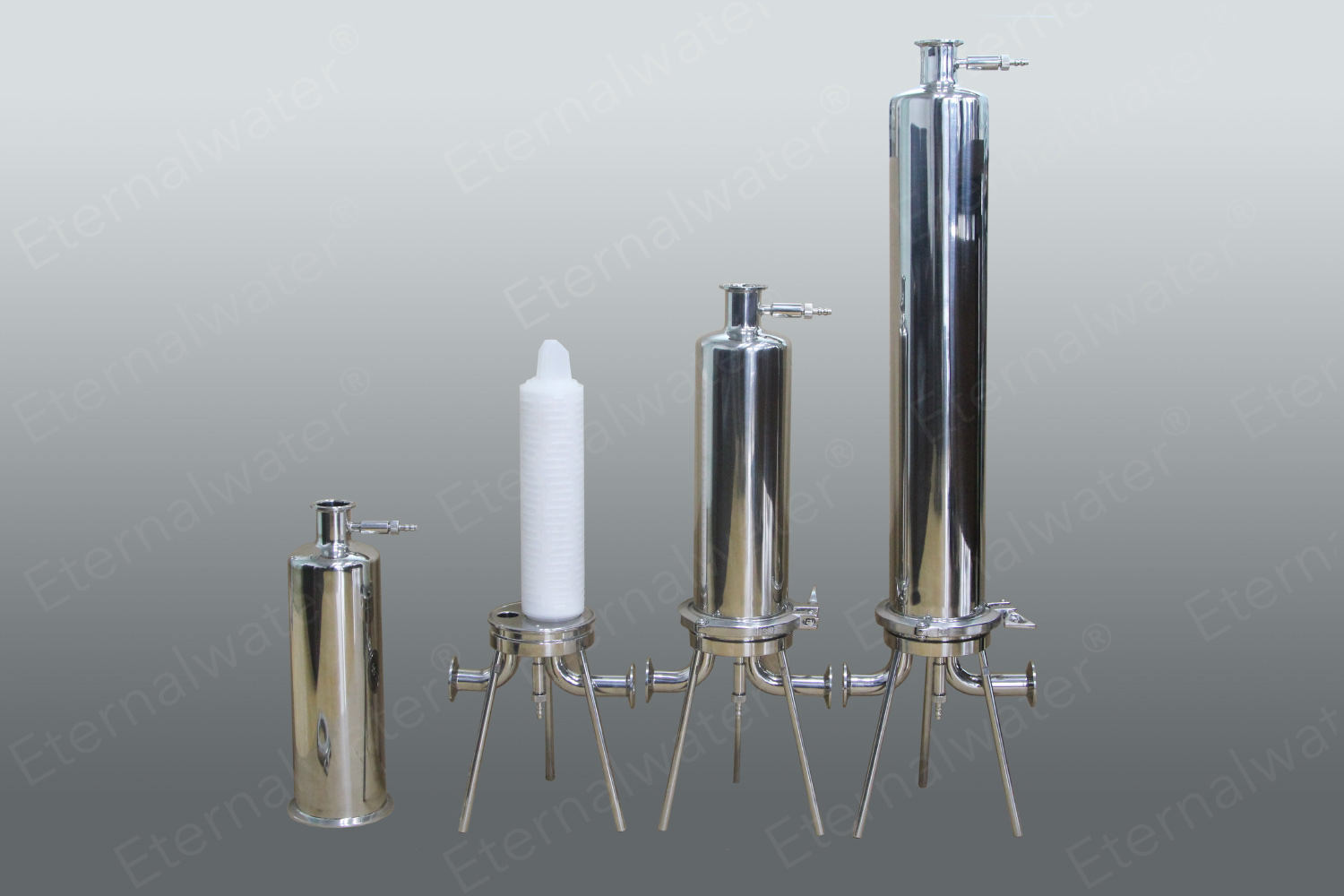

Stainless steel precision filter is made of SUS316L or SUS304 all stainless steel. With multiple filter elements as filtration units, it has the advantages of high filtration accuracy, fast filtration speed, no leakage, acid and alkali resistance, corrosion resistance, and convenient cleaning. In order to prevent the suspended particles that are not completely removed or newly generated in the pretreatment from entering the reverse osmosis system, and to protect the high-pressure pump and the reverse osmosis membrane, a filter-type security filter is usually installed before the reverse osmosis water enters. It is an ideal filtration equipment for biomedicine, beer and beverage, chemical, water treatment and other industries.
  • Product features
  • It can effectively remove suspended solids and rust in liquid Multi core is suitable for liquid filtration with different flow requirements Fine mirror polishing, easy operation and free of dead corner
  • Industry Application
  • It is an ideal filtration equipment for biomedicine, beer and beverage, chemical, water treatment and other industries.
  • DOWNLOAD
  • INQUIRY NOW
PRODUCT DESCRIPTION
  • Material structure
  • shell: SUS 304、SUS 316L
  • Base: SUS 304、SUS 316L
  • Supporting foot: SUS 304
  • Sealing ring: EPDM, silica gel, fluororubber, PTFE coated, PTEF
  • Technical Parameter
  • Maximum withstand voltage : 8-15bar (according to design requirements)
  • Maximum operating temperature: 100℃
  • Filter specification
  • Capacity of filter element :3-core, 5-core, 7-core, 9-core, 11 core...
  • Capable length of filter element: 20 〞、30〞、40〞
  • Filter connection
  • Cylinder connection: quick opening, flange
  • Inlet and outlet: quick opening, flange,thread
  • Filter (filter element) connection: 222、DOE
  • Filter surface treatment
  • Inwall: mirror-polished
  • Outer wall: mirror-polished, matt
Ordering Information
  • Series
  • HTB
  • Material Quality
  • 04=SUS304
  • 06=SUS316L
  • Number of filter elements
  • 03=3
  • 05=5
  • 07=7
  • 09=9
  • 11=11
  • End cap type
  • M20=M20
  • M30=M30
  • Length
  • 10=10
  • 20=20
  • 30=30
  • 40=40
  • Cylinder connection
  • F=flange
  • Import and export connection
  • F=flange
  • K=quick opening
  • L=thread
  • Import and export size
  • 25=25
  • 32=32
  • 40=40
  • 50=50
  • 65=65
  • 80=80
