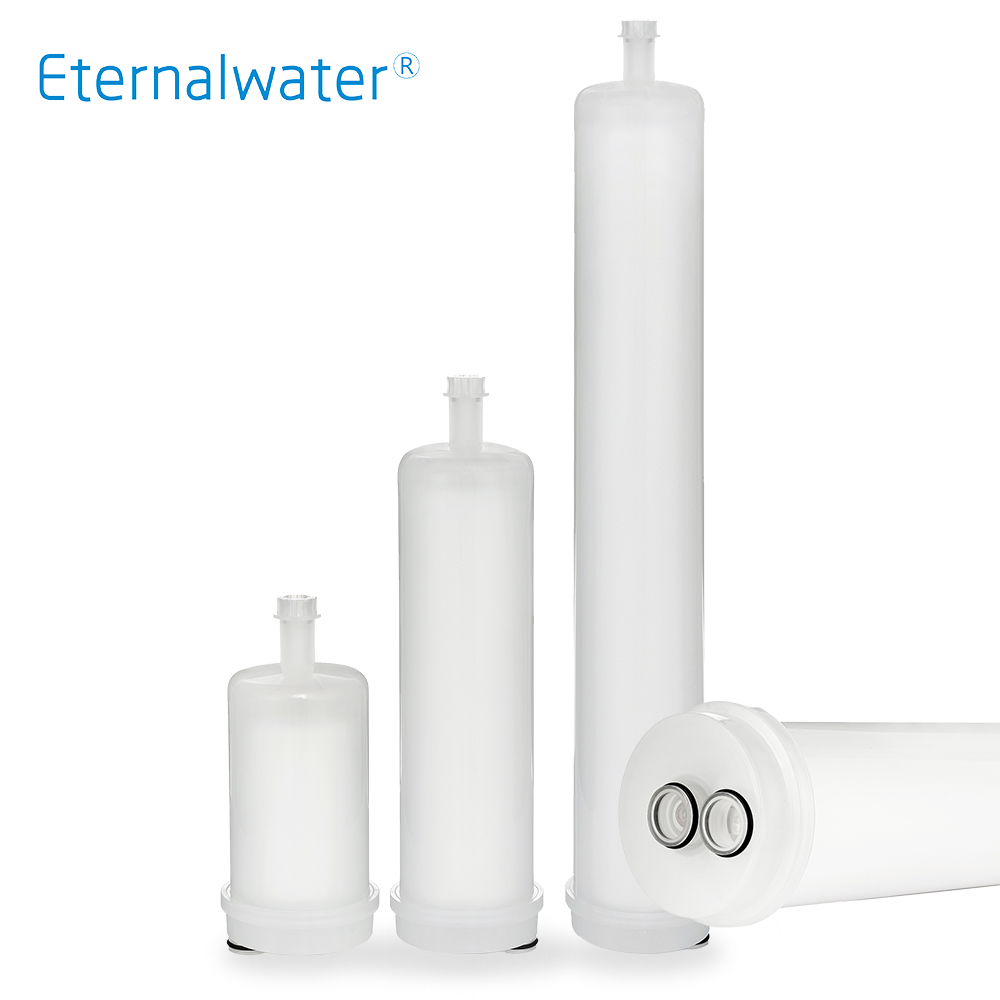

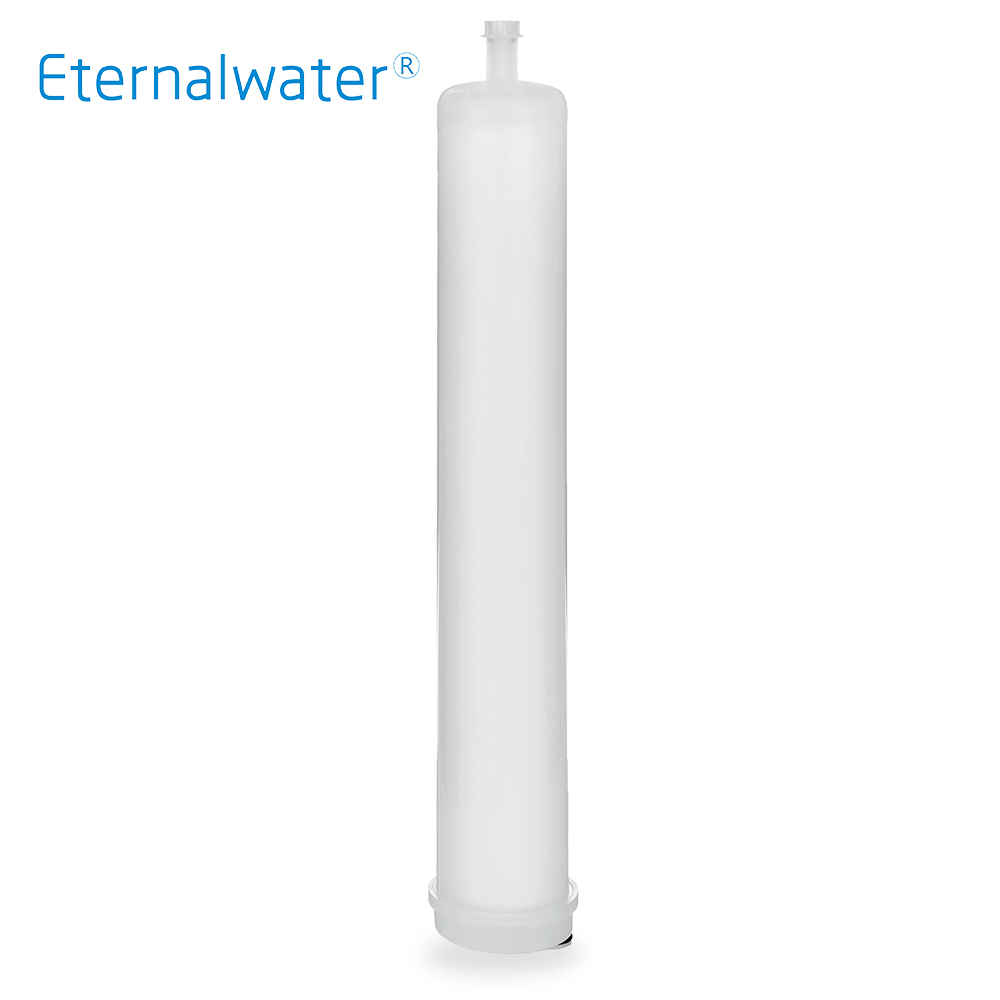

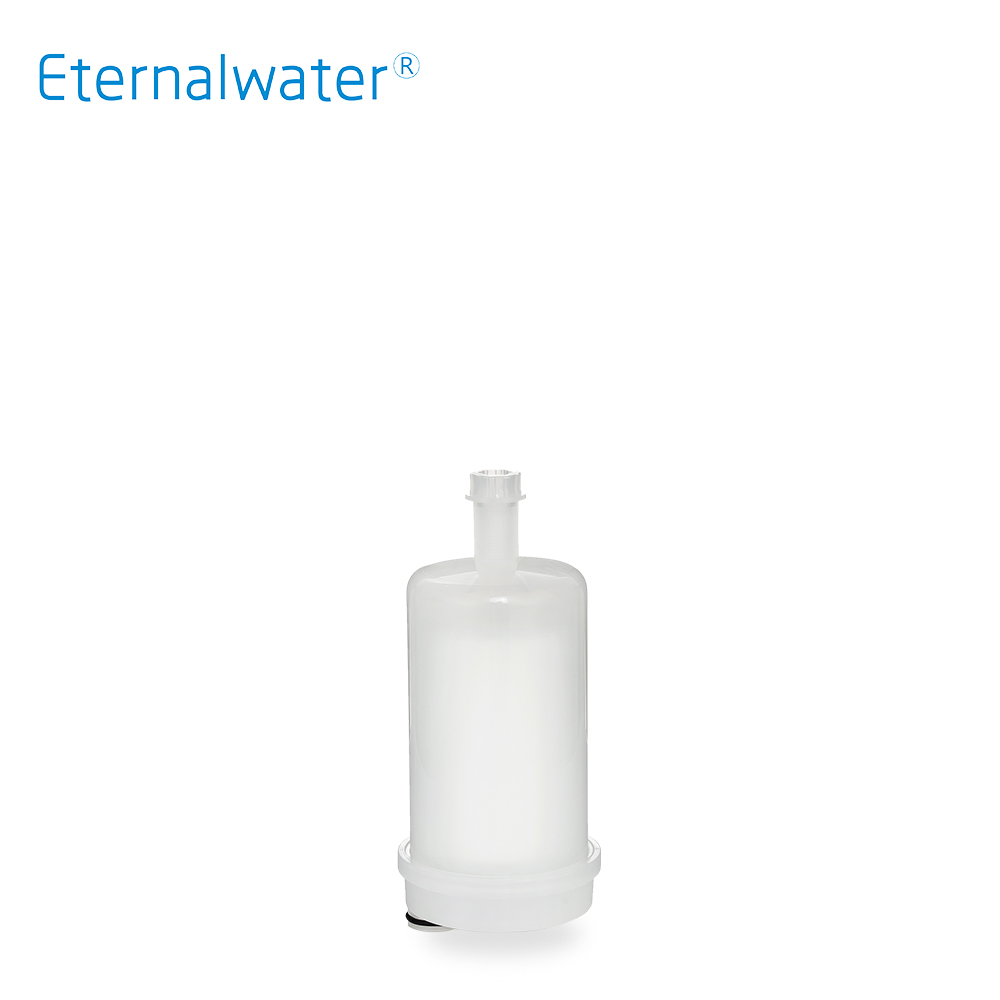

The EH series capsule filter adopts a unique structural design. The inner core is close to the PP shell with a very small gap, which effectively reduces liquid loss.
  • Product features
  • The filter cartridge can be replaced with a simple operation
    Suitable for high viscosity liquid filtration
    Keep the production environment clean and reduce environmental pollution
    The gap between capsule and filter is small, minimizing slurry residue
    There is no need to clean the stainless steel filter as the liquid will remain inside
    the encapsulated filter cartridge
  • DOWNLOAD
  • INQUIRY NOW
PRODUCT DESCRIPTION
  • Filter cartridge length:
  • 20inch | 10inch | 5inch
  • Shell length:
  • 571mm | 318mm | 192mm
  • Outer diameter:
  • 76mm
  • Inner filter cartridge structure:
  • Winding filter cartridge、Pleated filter cartridge
  • Filter membrane material:
  • Polypropylene (PP)
  • Check valve material:
  • Seal=PP/Spring=SUS304
  • Sealing o- ring:
  • EPDM
  • Exhaust valve thread size:
  • R 1/4
  • Maximum operating temperature:
  • 80°C
  • Maximum working pressure:
  • 0.7Mpa
Ordering Information
  • Series
  • EH Series
  • Vent
  • A=With exhaust valve
  • B=Without exhaust valve
  • Inner filter cartridge structure
  • J=Winding filter cartridge
  • Z=Pleated filter cartridge
  • filter cartridge length
  • 5=5 inch
  • 10=10 inch
  • 20=20 inch
  • Removal Rating
  • 150=15μm
  • 300=30μm
  • 500=50μm
  • 750=75μm
  • 900=90μm
  • 1000=100μm
  • 1250=125μm
  • 2000=200μm
  • Sealing o- ring
  • E=EPDM
